IPROTECT +
E@RACK
Engineered through Computational Fluid Dynamics (CFD) with A*STAR’s IHPC, the E@Rack redefines high-density performance. As Singapore’s first CFD-validated data centre rack, it delivers superior airflow, lower energy costs, and reliable cooling efficiency, setting a new benchmark for intelligent infrastructure.
- CFD-Validated Design (by A*STAR IHPC)
- Improved Airflow & Heat Sinking
- Lighter Yet Stronger
- Supports Up to 2000 kg Static Load
- Custom Sizes Available

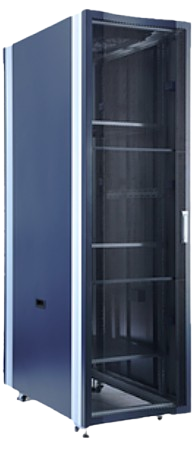

E@Rack
High-Density Data Centre Cabinet
Performance You Can Measure
Improved Airflow & Heat Sinking
CFD-driven airflow paths minimize hotspots and stabilize internal rack temperature.
01
Reduced Cooling Load
Efficient air management lowers energy usage and operational costs.
02
Enhanced Equipment Longevity
More stable thermal conditions extend hardware lifespan.
03
Higher Load Capacity
Supports 2,000kg static and 1,200kg dynamic loads under independent testing.
04
Increased ROI
Reduced CAPEX and OPEX through improved efficiency and reliability.
05
Tested at 16kW under controlled condition by IHPC A*STAR (Sufficient Airflow Provided, 120-150 CFM/kW, depending on environment resistance)
Engineered for Excellence

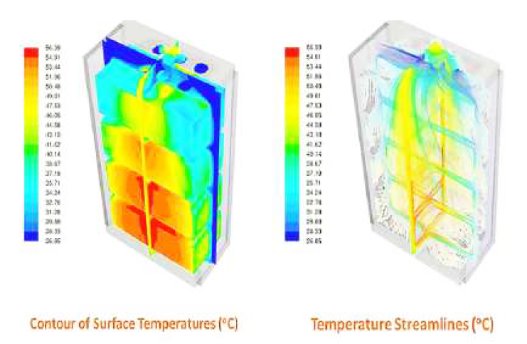

Designed with CFD Simulation for better airflow and high heat-load management
Improved Cable Management reduces footprint by 25% of cabinet space
Independent locking mechanism offered from basic locks to 3FA capabilities enablement
Space-Frame Technology for superior strength-to-weight ratio
Eco-friendly mounting profile for simplified installation
Bus Bar Power-Strip ensures robust, maintenance-free power termination

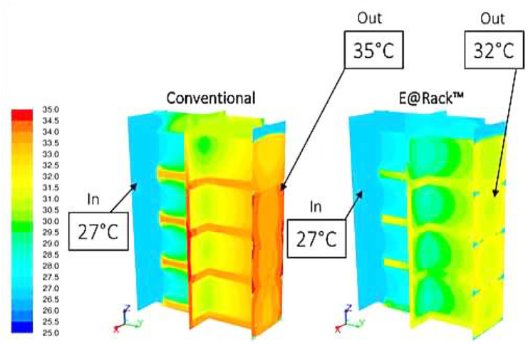

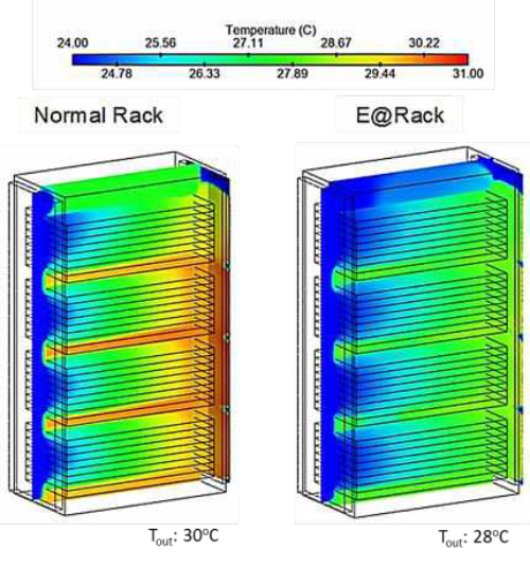

CFD-TESTED AND PROVEN
Through collaboration with IHPC (A*STAR), ERS is the first and only Singapore-based rack manufacturer to use CFD simulations in design and verify CFD-assisted performance upon deployment.
Source: “Zero To 30 – Singapore’s Supercomputing Journey,” National Supercomputing Centre (NSCC)
